Model LG 580.54701 400 – Common Parts & Diagrams
Diagram 0

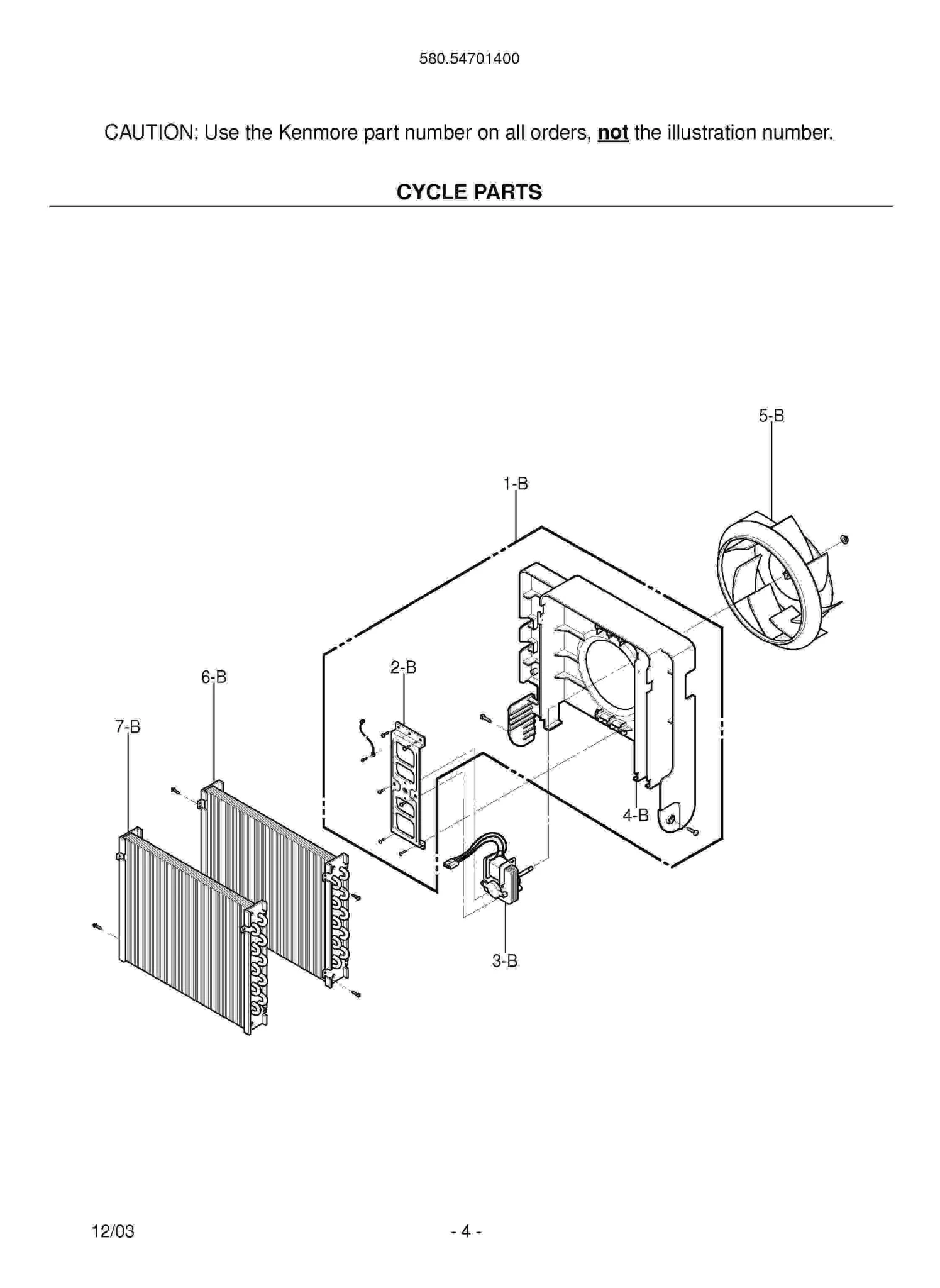

Diagram 1

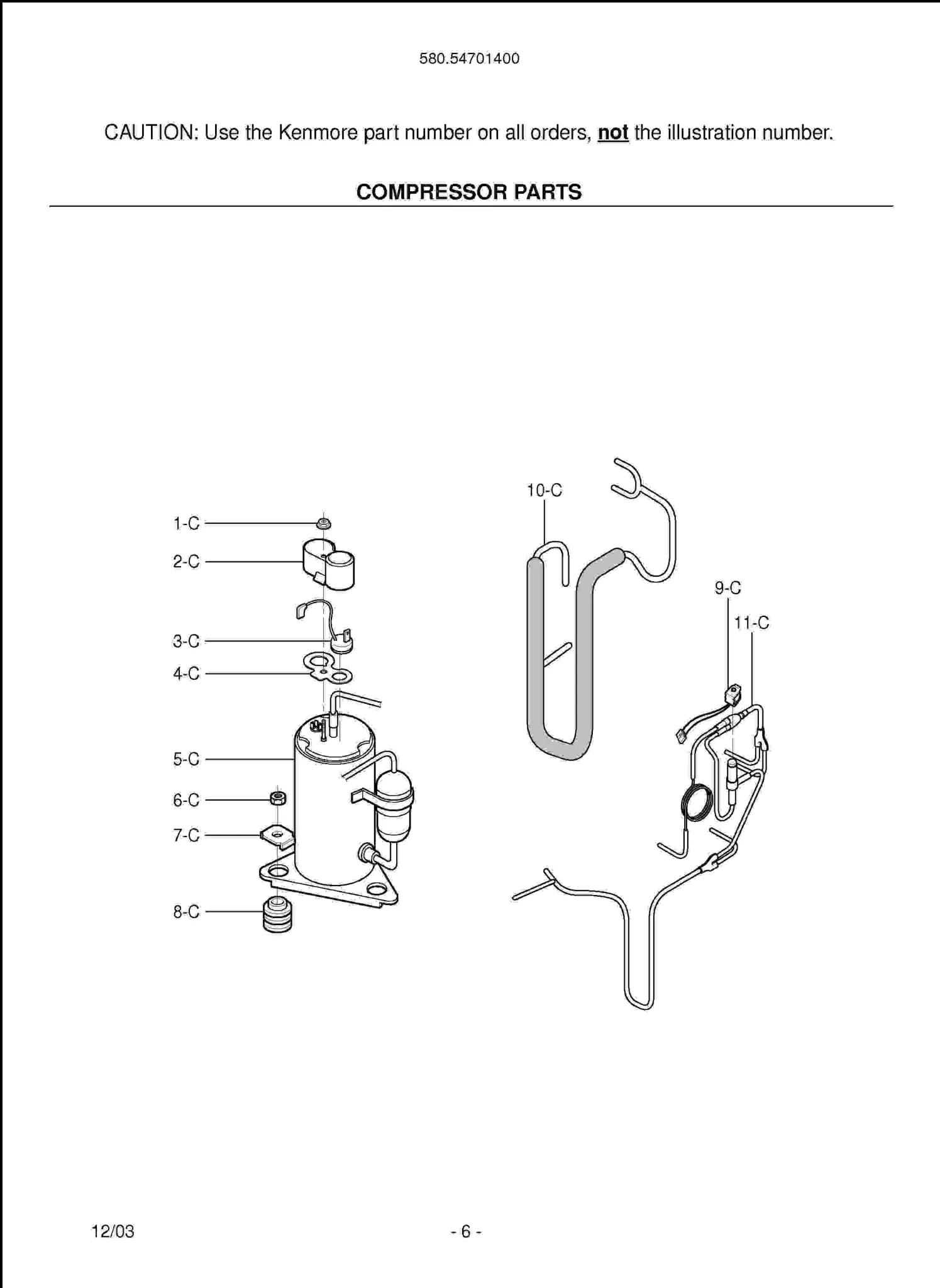

Diagram 2
Common parts from model LG 580.54701 400
35211A
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A10454A Contact Us For Availability
130411
BASE ASSEMBLY,SINGLE LGE 3041A10042A Contact Us For Availability
130910
CABINET LGE 3090A10042A Contact Us For Availability
148380
TANK ASSEMBLY,BUCKET LGE 4839A10002B Contact Us For Availability
149980
SHROUD LGE 4998A10034A Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20040A Contact Us For Availability
165010
Sensor Assembly LGE 6877A30013R Contact Us For Availability
235512
COVER ASSEMBLY,DISPLAY LGE 3551A20109B Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20079D Contact Us For Availability
249950
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20359D Contact Us For Availability
249950
PCB Assembly,Main LGE EBR36909304 Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20001Z Contact Us For Availability
266010
SWITCH ASSY,MICRO LGE 6600A30003C Contact Us For Availability
268711-1
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20482A Contact Us For Availability
330870
DRAIN PAN ASSEMBLY LGE 3087A10019A Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20040K Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20009B Contact Us For Availability
352111
BUSHING LGE 4830A30005A Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A10455A Contact Us For Availability
435300
GRILLE,REAR LGE 3530A10193A Contact Us For Availability
552111
TUBE ASSEMBLY,CAPILLARY LGE 5211A10468A Contact Us For Availability
554030
CONDENSER ASSEMBLY,FIRST LGE 5403A10008L Contact Us For Availability
554160
TBZ31951701 ALTERNATE LGE 2520UCBA007 Contact Us For Availability
567502
O.L.P LGE 6750U-L048A Contact Us For Availability
752140
HOSE,CONNECTOR LGE 5214A20027A Contact Us For Availability
752140
HOSE,CONNECTOR LGE 5214A20027B Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20005J Contact Us For Availability
× ![]()
